Introducing the Vapor Edge Modules

Right-sized for each market, intelligent modular data centers make grid colocation easy

The Kinetic Grid offers physical colocation options presented by custom-manufactured Vapor Edge Modules. We deploy these modular data centers in edge locations, with different sizes and capacities optimized for specific site and market conditions. These detailed specifications provide the information you need to plan your Kinetic Grid deployments in any market.

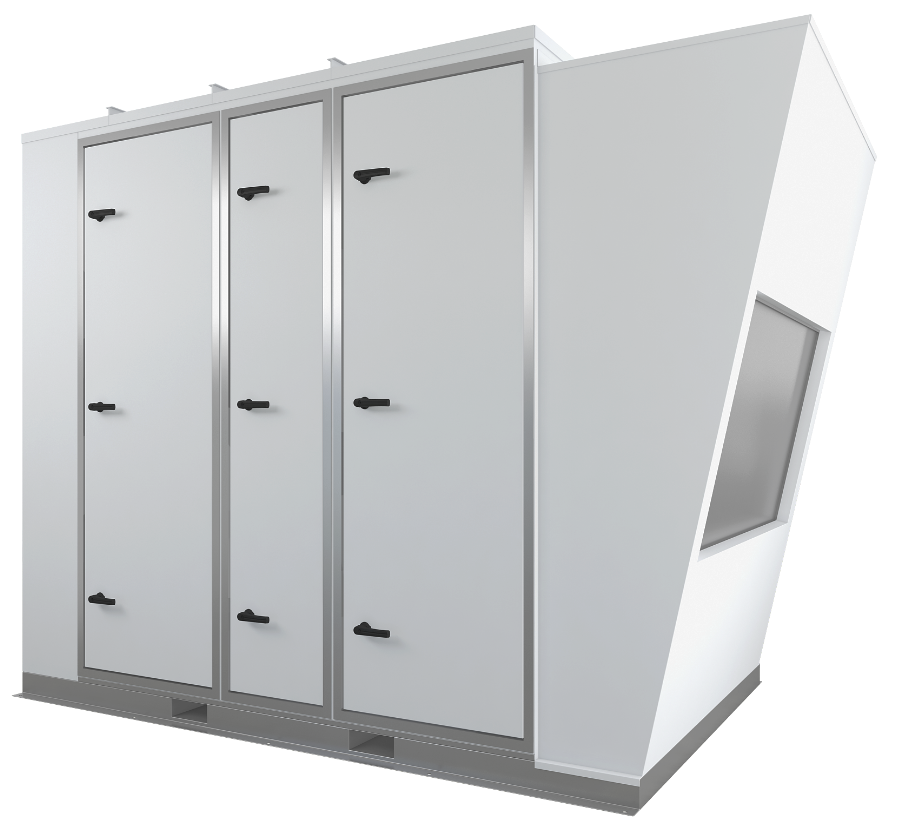

VEM-20
VEM-20 VEM-150 VEM-180

VEM-20

Download Data Sheet PDF
The VEM-20 is a high density outdoor pedestal solution for the deployment of edge applications. Unlike many telecom pedestal solutions, the VEM-20 is designed with data center operators in mind and provides solutions and features commonly found in enterprise data centers. The VEM-20 offers two physically and logically isolated 10 kW racks. The VEM-20 has also been specifically designed to support 5G O-RAN, serving as many as 20 towers from each pedestal. A set of carefully-located VEM-20s become an ideal platform on which to build a virtualized 5G network and serve it with local breakout, exchange and edge compute applications.
Technical Specifications
Construction
Width
6ft (1.83m)
Length
13ft 8om (4.16m)
Height
8ft 10in (2.70m)
Approx. Weight (Empty)
4,500lbs
Approx. Weight (Populated)
11,000lbs
Exterior Construction
Full thermal break powdercoated steel panels
Interior Construction
Galvanized Interior
Addt’l Features

NEMA 3R+ Construction One-Piece Roof/Rain Canopy
Double Gasketed Exterior Access Doors
Full LED internal lighting
Electronic Locks
Forklift and Crane compatible base structure

IT Specifications
Racking

Rack 1 – 47RU 600mm Width x 1200mm Depth

Rack 2 – 47RU 600mm Width x 1200mm Depth Zones

Power
Single Phase 240V 200A Service w/ ATS and Generator connections
Power Distribution

Rack 1 – 4 x L6-30 1ph 208V

Rack 2 – 4 x L6-30 1ph 208V

Cooling

20kW DX Cooling System @ N, 12kW at 2N

Separate Cooling System access

Hot-Swappable N+1 Supply Fan System

Fully independent 12kW DX Systems for concurrent maintainability below 12kW.

Ships Complete and Tested

Site Requirements
Pad Size

8ft x 12ft

Pier/Pre-Cast Platform Compatible?
Yes
Clearances

Minimum 4ft in front of Doors and Electrical Enclosures

Minimum 2ft in front of Condenser

Power Requirements

200A Single Phase 240V Service

Fiber Entry

2 x 4in Conduits

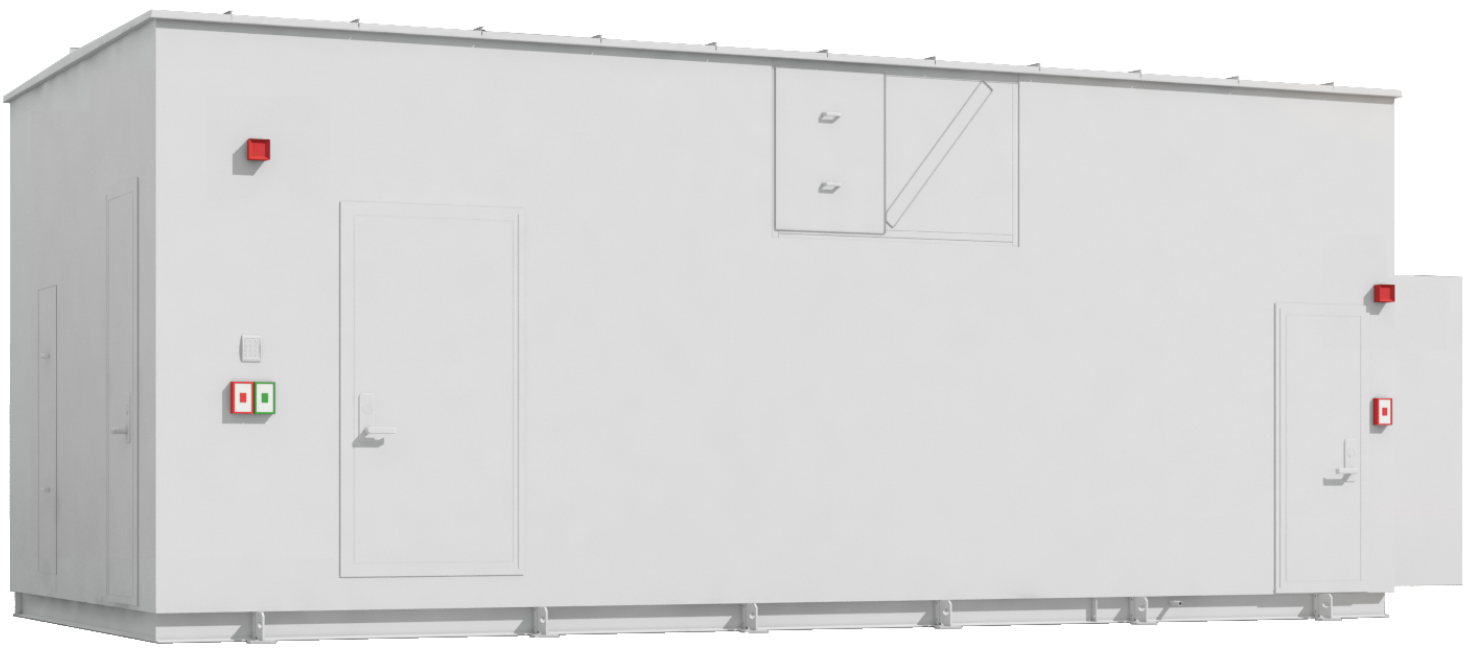

VEM-150

Download Data Sheet PDF
Capable of supporting 150 kW of IT equipment, the VEM-150 is slightly larger than a standard cargo container and has six 36 kW high-density racks that can support up to 24 individual tenants with locking and isolation mechanisms on every quarter rack. The VEM-150 exists in a few locations, but has been replaced by the VEM-180 for new deployments.
Technical Specifications
Vapor Edge Module (VEM-150) Specifications
Physical Dimensions
30’ (9.14m) (length) 12’6” (3.81m) (width) 12’6” (3.81m) (height)
Base Structure
8” steel channel construction, slab or pier mountable; removable lifting lugs and seismic anchor points; integrated floor drains in each section.
Casing and Finish
2” thick double-wall insulated construction with 16 ga G90 exterior paneling and 20 ga interior paneling; frame Gray Polyester TGHIC powder coated finish, ASTM-B117 salt spray resistance 1,000 hrs.
NEMA Rating
NEMA 6 (IP66) outdoor construction for 24/7/365 outdoor use.
Lighting
Motion activated LED interior and exterior lighting; zero visible light emitted from exterior in normal operation; occupancy sensors located in each interior space with hold-on switches.
Estimated Shipping Weight and Rigging
42,000 lbs (19,000kg), 8 Point (4 per side) lifting configuration.
Shipping Configuration
Ships without UPS batteries and with all protruding exterior items removed such as pull stations, lighting, sound attenuators, etc.
Mechanical Cooling Power Connection
480V 3Ph 60Hz
IT Equipment Power Connection

480V 3Ph 60Hz (315A MCA/350A Input Breaker)

IT Equipment Capacity

165 kW critical IT load @ 110°F Ambient; 1 full Vapor Chamber, 6 Wedge Racks at 36 RU each, supporting up to 24 separate tenants.

Supply Air

19,500 CFM @ 72°F (25°F ?T Target)

UPS

Eaton 93PM 150 kVA, 480V 3ph Input – 120/208V 3ph Output.

Fire System
Johnson Controls addressable Fire Panel; Vesda fire detection located within return air plenum in IT space; Thermotech 194 °F heat detector in mechanical space; sapphire gaseous suppression.
Security System
Vapor IO-developed security panel; 7 360-degree high-resolution weatherproof POE cameras, 4 along each exterior wall, 3 located in each interior space; electrified panic hardware (exterior) and magnetic lock (interior) controlled via Vapor IO-developed security panel; 3 weatherproof NFC compatible access control readers, one per door; magnetic door position switches at each access door as well as each maintenance hatch/door.

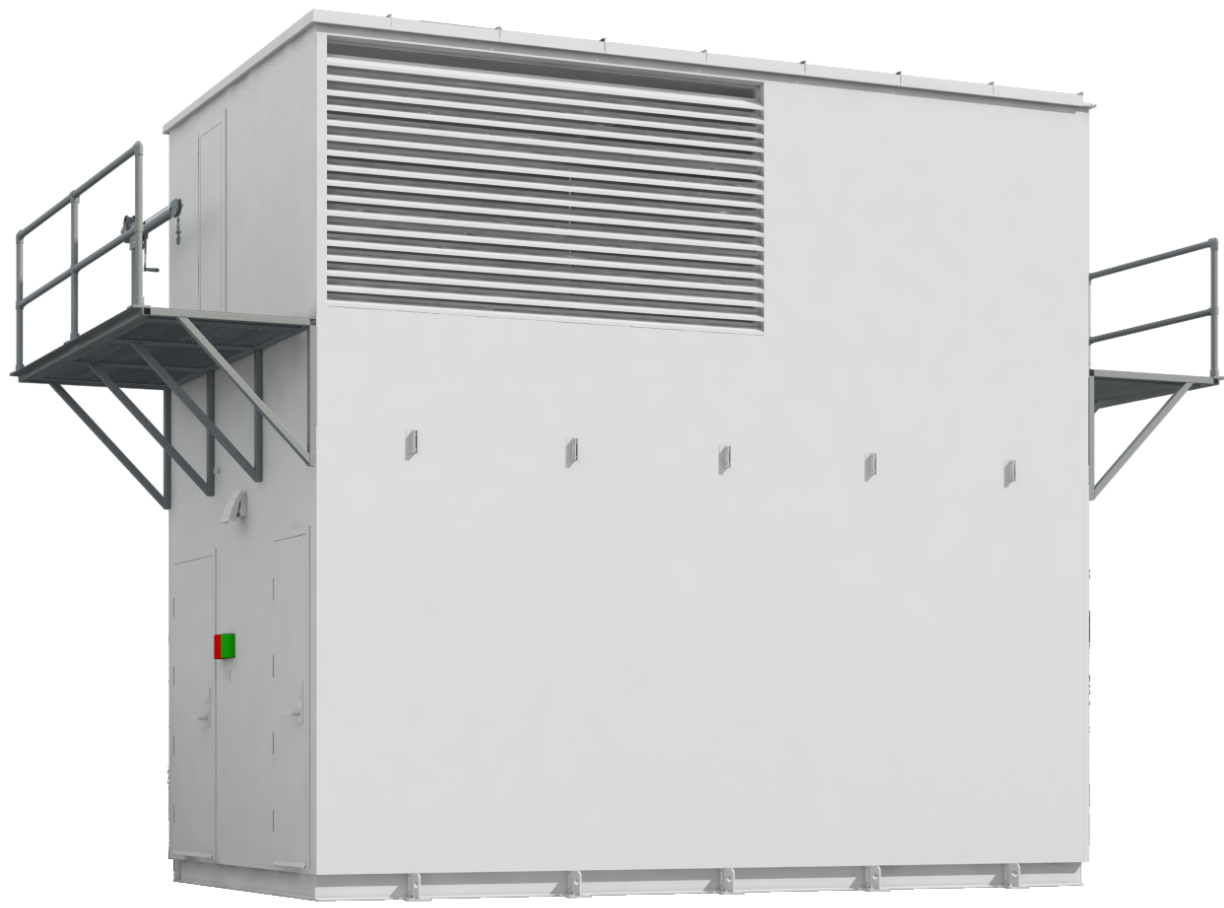

VEM-180

Download Data Sheet PDF
The VEM-180 is a two-story stacked system capable of housing 180 kW of IT equipment with separate tenants in each of 8 or 10 racks, depending on the model. The VEM-180 has replaced the VEM-150 for new deployments.
Technical Specifications
Vapor Edge Module (VEM-180) Specifications
Physical Dimensions
21’8” (6.29m) (length) 10’8” (3.27m) (width) 20’ (5.96m) (height); shipped as two half height halves for transport; IT equipment positioned in lower half, with cooling equipment positioned in upper half.
Base Structure
8” steel channel construction, slab or pier mountable removable lifting lugs and seismic anchor points.
Casing and Finish
2” thick double-wall insulated construction with 16 ga G90 exterior paneling and 20 ga interior paneling; frame Gray Polyester TGHIC powder coated finish, ASTM-B117 salt spray resistance 1,000 hrs.
NEMA Rating
NEMA 6 (IP66) outdoor construction for 24/7/365 outdoor use.
Lighting
Motion activated LED interior and exterior lighting; zero visible light emitted from exterior in normal operation; occupancy sensors located in each interior space with hold-on switches.
Estimated Shipping Weight and Rigging
12,600 lbs (5,715kg) (lower half), 18,000 lbs (8,165kg) (upper half); (6 Point (3 per side) lifting configuration; shipped as two half-height halves for transport, stacked together at deployment site with small crane.
Shipping Configuration
Ships without UPS batteries and with all protruding exterior items removed such as pull stations, lighting, sound attenuators, etc; ships as two half-height halves for stacking together at deployment site with small crane.
Power Connection
480V 3Ph 60Hz (mechanical cooling), 480V 3Ph 60Hz (315A MCA/350A Input Breaker) (IT equipment).
Sound Attenuation
<70 Dba measured at intake or exhaust.
IT Equipment Capacity
10 client racks supporting up to 40 tenant zones 48” full-depth 47RU racks; configurable in the field to 4-2-1 zones; standard rack PDUs.
Cooling System
180kW @ 115F Ambient supplied by intelligently redundant economized DX cooling system. N+1 Redundancy on moving components such as fans, pumps and compressors. Economization capable of 0-100% trim dependent on ambient temperatures.
Supply Air

24,000 CFM @ 72°F (25°F ?T Target).

UPS

Schneider Electric Galaxy VM 225kVA, 480V 3ph input – 208V 3ph output.

Fire System
Fire Panel; Vesda fire detection located within return air plenum in IT space; Thermotech 194 °F heat detector in mechanical space; Novec 1230 – 3M Sapphire gaseous suppression.
Security System
Vapor IO-developed security panel; 7 360 degree high-resolution weatherproof POE cameras, 4 along each exterior wall, 3 located in each interior space; electrified panic hardware (exterior) and magnetic lock (interior) controlled via Vapor IO-developed security panel; 3 weatherproof NFC compatible access control readers, one per door; magnetic door position switches at each access door as well as each maintenance hatch/door.
